Sports Mobile Studio
(click on photo
to enlarge)

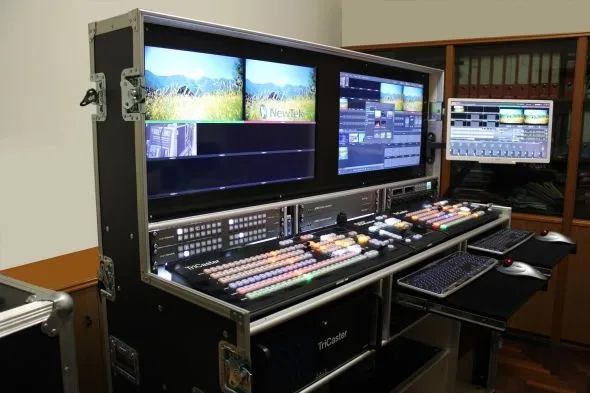

The SPORTS MOBILE STUDIO has been designed for a customer who live footage of motor racing, the configuration has been agreed in accordance with its needs, but may be modified in order to achieve your ideal configuration.
We describe this version that uses 2 of the NewTek TriCaster, a 860 with 8 inputs used as main video director, dedicated to filming and sending the signal via cable or satellite and a 460 with 4 inputs dedicated to the management of transmission and streaming on the web on social networks, also having a double TriCaster in the case of failure of one can be used as an alternative the other.
We recommend for sporting events that require even the slow motion (eg. football matches) instead of a TriCaster 460 a Tricaster 4800 that has the function of moviola with 4 slow motion.
In SPORTS MOBILE STUDIO are installed:
- 2 Smart Video HUB 16x16 video matrix of Blackmagic Design (located on the left side). They take as input the video from all cameras involved in the shootings and send them to all 2 TriCaster, if there are problems while you are on air, via the matrix can immediately switch all cameras from a TriCaster to another.
- 2 ATEM Studio Converter 2 Blackmagic Design, to connect via optic fiber up to 8 cameras SDI or HDMI (4 + 4) , which can be positioned up to 45 km away, in the 2 apparatuses is also built-in a talkback intercom for communication between cameramen and director. The apparatus is placed in the middle of SPORTS MOBILE STUDIO.
- 1 equalized analog video distributor (1x20 Kramer VM-1021) that is connected to a Beta recorder (located on the right side).
- 1 audio mixer (Mixer Audio Ultrazone ZMX8210 - Behringer).
- 1 solid state memory (SSD) recorder: HyperDeck Studio 2 (Blackmagic Design) to make a backup of the video of the race can put at the disposal of the judges in the case of infringements or accidents. The judges have another HyperDeck Studio on which to place the SSD to review the movie in another room.
- 1 Open Gear rack frame by Blackmagic Design with 20 slot that accommodates various cards with different functions between them (located in the lower part of the direction). In this configuration, the first card is a distributor and clock reference to synchronize the two Blackmagic Matrix and the two TriCaster to have them in phase in case of a sudden exchange from one to the other TriCaster. The second card is a converter SDI / Analog to use a tape recorder in Beta format. The third is a conversion card Analog / SDI in order to use the reportage that are supplied in the Beta Standard. The fourth card is the UpDownCross which is a signal converter from SDI HD to SDI SD and vice versa and from PAL to NTSC and vice versa.
- Conversion video formats from SD to HD, Conversions Up / down / cross, NTSC / PAL outputs, converts 720p to 1080i or vice versa, Auto SD / HD Switching, Low jitter SDI.
- The sound diffusion is performed using 2 speakers Bose (Companion 2 Series 3).

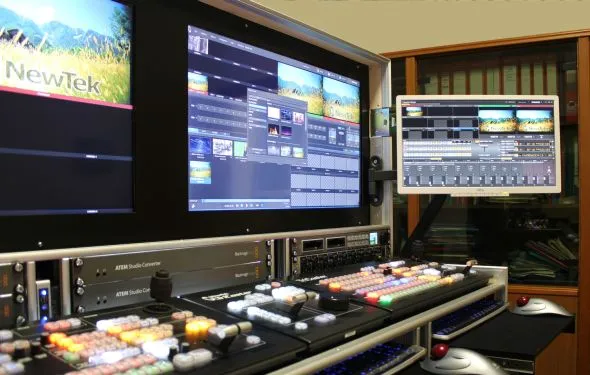

- 2 big TV/monitor (32" LED Samsung UE32F5000) are matched to the TriCaster 860 while the third monitor, the smallest, (Monitor 20" Fujitsu BV20T-6) with articulated arm is matched to the TriCaster 460, In the event of failure of the TriCaster 860, using a HDMI switch (located in the central part of the director), you can connect the 2 big monitors to TriCaster 460.
The big monitor on the left is used as the multiview TriCaster 860 and via the switch, you can connect it directly to the TriCaster 460 also.

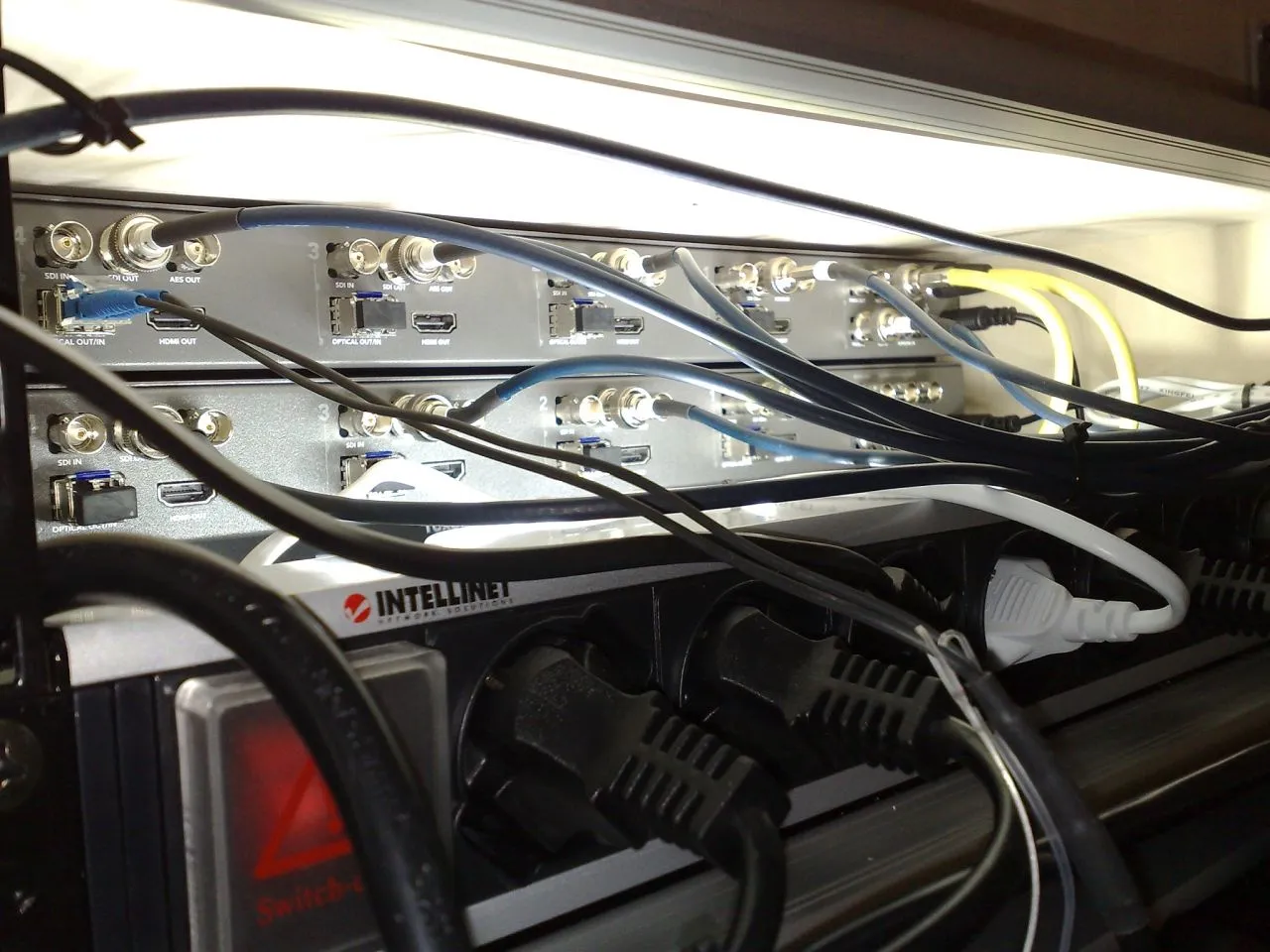

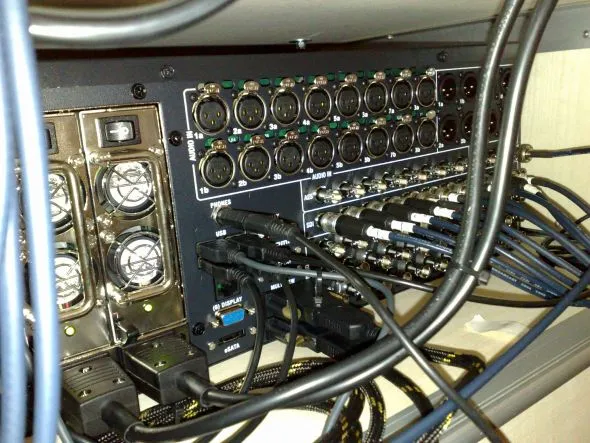

On the back there are 2 LED lamps to illuminate the area of the connectors and the equipment for power distribution.

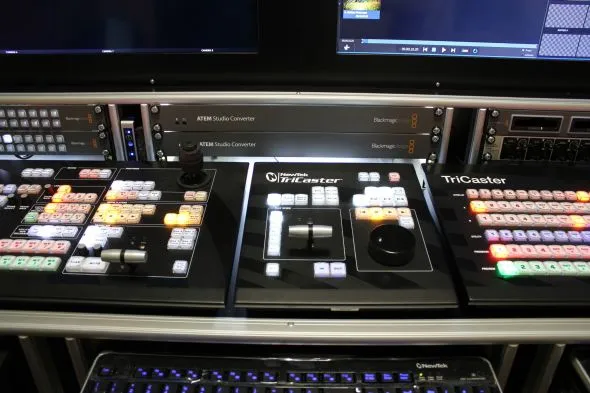

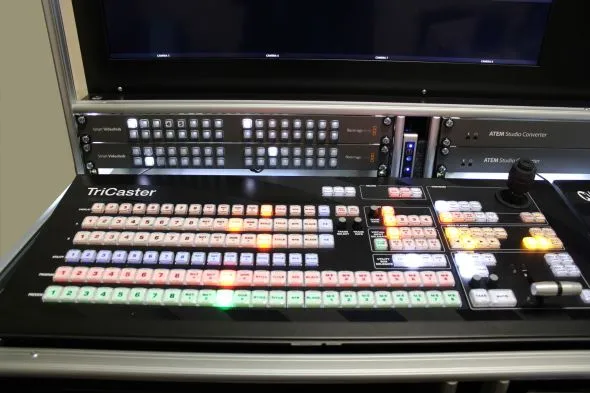

The installed equipment in Sports Mobile Studio:

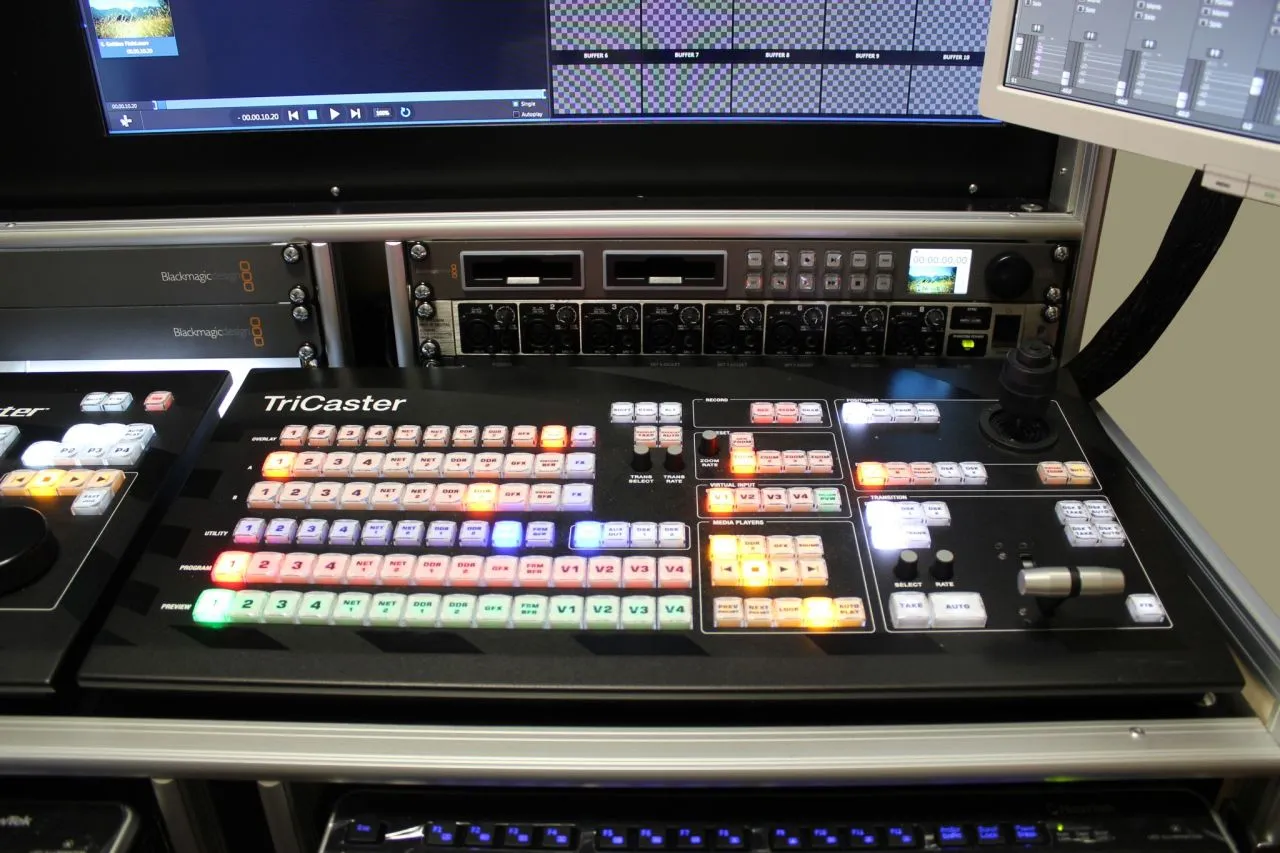

- Tricaster 860 + 860 CS (control surface)
- Tricaster 460 + 460 CS (control surface)
- Tricaster 850 TW (instant replay and slow motion playback)
- 2x Smart Video HUB 16x16 (video matrix - Blackmagic Design)
- 2x ATEM studio converter 2 (to connect via optical fiber 4+4 cameras SDI or HDMI + talkback intercom - Blackmagic Design)
- Hyper Deck studio 2 (ssd recording - Blackmagic Design)
- Open gear 20 slot open frame (Blackmagic Design)
- Open gear sync generator (Blackmagic Design)
- Open gear SDI to Analog (Blackmagic Design)
- Open gear Analog to SDI (Blackmagic Design)
- Open gear Updown Cross (Blackmagic Design)
- 2x TV Monitor LED 32" Samsung UE32F5000
- Monitor 20" Fujitsu BV20T-6 with articulated arm
- Kramer VM-1021 (equalized analog video amplifier 1x20)
- Mixer Audio Ultrazone ZMX8210 (Behringer)
- 2 speakers Bose Companion 2 Series 3
- 4 hard disk Seagate sata 3 6 gbit/s 2 TB 7200 RPM

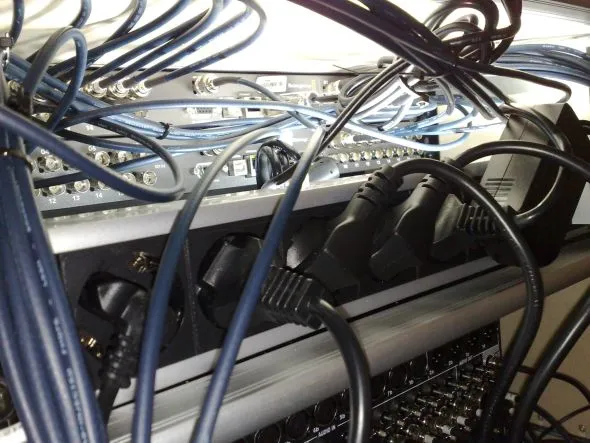

- 1 power distributor
- 2 mouse
- various cables for wiring
- 2 drawers for items, for rack (one high 2RU and the other high 3RU)
- Flightcase with 6 wheels
(click on photo to enlarge)
Applications:
- Live events (sport, art, political);
- Dedicated studio during international TV transmissions: (soccer, F1, Motorcycling etc);
- Advertising, television spots, telesales;
- Documentaries and journalistic reports;
- Production of video and industrial video;
- Short and full-lenght film;
- Interviews and debates;
- Live concerts and realization of musical videoclips;
- Inaugurations, shows, seminairs and congresses;
- Student, technical and sanitary personnel training;
- Virtual sets;
- Surgical videos;
- Weddings, fashion parades;
- TV shots in cult sites;
- Live streaming and Webcasting;
- Community access e PEG facilities;
- TV Stations.
(click on photo to enlarge)
TriCaster 860 builds on the features of every TriCaster professional model, and adds more channels, more sources, more I/O, more visuals and effects, and higher capacity.
Add new shows or take on more clients, create more programming, and discover fresh streams of revenue from the same program content.
With a fully loaded, 24-channel switcher with 8 M/Es, eight-source ISO recording, real-time multi-channel media delivery with simultaneous streaming and social media publishing, and the powerful integrated effects system, productions will be more than sizzling, they will be explosive.
- 8 M/E, 24-channel video switching with audio mixer, titles, warping transitions, buffers, DSK and DVE effects
- Higher-capacity media storage accommodates a high volume of project work
- I/O and source resolution, format and frame rate flexibility to go from show to show, adding new camera angles and submixes along the way for the most sophisticated programs
- Holographic LiveSets that incorporate 3D environments, panoramic vistas, and real camera motion
- Extensive automation and breakout control of commands and complex sequences
- Custom, interactive elements and effects sequences triggered by talent
- Instant social media publishing
- Built-in live streaming at the push of a button
- Stream, broadcast, project and record—live or in post—so you can meet viewers wherever they watch, now or later
link to Tricaster 860 on Newtek website
(click on photo
to enlarge)
The most versatile and extensive of NewTek mobile-scale multi-camera video solutions, TriCaster 460 has any-format, any-resolution, any frame-rate I/O and amped-up production capabilities to let you connect any camera, access any available video source, and go live from locations that you could only dream of reaching before. Go live from virtually new worlds with 3D and holographic sets.
Produce a four-camera show that looks infinitely bigger, with layered video, real-time compositions, and multiple submixes that give the look of adding four other switchers into the stream. Deliver multi-channel media with simultaneous streaming and social media publishing. Record every feed for later remixing, sweetening, or just fixing mistakes.
Get the source footage to your creative team for postproduction, or create whole new programs from the media you already captured. With TriCaster 460, your revenue opportunities are just beginning.
- 4-M/E, 15-channel video switching with 4 M/Es, audio mixer, titles, warping transitions, buffers, DSK and DVE effects
- Flexible I/O with mix-and-match HD and SD component, composite, and SDI connectivity for any resolution, frame synced for optimal video processing
- Customizable visuals to brand each program with its own high-end look and feel
- Virtual sets with 3D environments and panoramic appearance, including realistic camera movements
- Extensive automation and breakout control of commands and complex sequences
- Custom, interactive elements and effects sequences triggered by talent
- Publish to social networks, stream live, record and project, simultaneously
- Record each camera feed for later production with our groundbreaking IsoCorder multi-track capture technology
- Postproduction workflows with extensive file format compatibility and removable storage
- Deliver from a van, small studio, broadcast control room, backstage, blogger's workspace
link to Tricaster 460 on Newtek website
(click on photo
to enlarge)

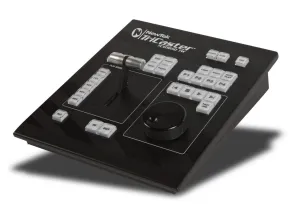

Add dedicated, single-channel playback control to your live production workflow with TriCaster 850 TW. Share the workload with a second operator, focused exclusively on playing back stored clips and graphics. Slow down or speed up playback of the dedicated channel, and with jog-wheel and transport controls, you can forward, reverse, and replay any clip with a touch.
- Intuitive layout for manual control of TriCaster media players
- Dedicated operation for instant replay and slow motion playback of a selected DDR
- Illuminated buttons for heightened visibility of control surface activity under any environmental lighting conditions
- Premium T-Bar and jog wheel for precision control of clip creation and playback
- Durable, ergonomic design for confident, comfortable performance
- Compatible with TriCaster 8000, TriCaster 860, TriCaster 460, TriCaster 410 and TriCaster 40.
link to Tricaster 850 TW on Newtek website
(click on photo
to enlarge)

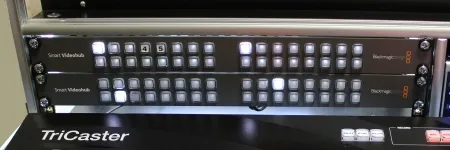

Blackmagic Design Smart Videohub router
Smart Videohub includes all the great features of Micro Videohub plus a built in control panel. Now you can change all routing with the push of a button! Smart Videohub includes 16 x 16 SDI, 3 Gb/s SDI, auto SD/HD/3 Gb/s SDI, re-clocking, ethernet, USB and serial router control interfaces. Great first router that's incredibly easy to use. Plus you can expand it's power with all the exciting Videohub control !
- SDI Video Input
16 x 10 bit SD-SDI, HD-SDI, 3Gb/s HD and 2K switchable - SDI Video Output
16 x 10 bit SD-SDI, HD-SDI, 3Gb/s HD and 2K switchable - Reference Input
Blackburst and TriSync for SD, HD and 2K - Multi Rate Support
Auto detection of SD, HD or 3 Gb/s SDI. Simultaneous routing of 2K, HD, SD video and DVB-ASI - Updates
USB 2.0 high speed (480Mb/s) interface - Router Control
32 buttons for local control of Videohub or use either RJ45 Ethernet or USB 2.0 high speed interface shared over IP network - Router Configuration
Use either RJ45 Ethernet or USB 2.0 high speed interface shared over IP network - RS-422 Router Control
1 x input for controlling router crosspoint switching - Reclocking
On all SDI outputs, auto switching between standard definition, high definition or 3 Gb/s SDI video - SD Format Support
625/25 PAL and 525/29.97 NTSC - HD Format Support
1080p23.98, 1080PsF23.98, 1080p24, 1080PsF24, 1080p25, 1080PsF25, 1080p29.97, 1080PsF29.97, 1080p30, 1080PsF30, 1080i50, 1080i59.94, 1080i60, 1080p50, 1080p59.94, 1080p60, 720p23.98, 720p24, 720p25, 720p29.97, 720p30, 720p50, 720p59.94, 720p60 - 2K Format Support
2048 x 1556/23.98/24/25 - SDI Compliance
SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 310M, SMPTE 425M-A, SMPTE 425M-B, ITU-R BT.656 and ITU-R BT.601 - SDI Video Rates
SDI video connections are switchable between standard definition, high definition and 2K. SDI switches between 270 Mb/s standard definition SDI, 1.5 Gb/s HD-SDI and 3 Gb/s HD and 2K SDI - SDI Video Sampling
4:2:2 and 4:4:4 - SDI Audio Sampling
Television standard sample rate of 48 kHz and 24 bit - SDI Color Precision
4:2:2 and 4:4:4 10 bit - SDI Color Space
YUV or RGB - SDI Auto Switching
Automatically selects between SD-SDI, HD-SDI, 3 Gb/s SDI and DVB-ASI on each input so that each input can be running a different television standard - SDI Metadata Support
Video payload identification ancillary data as per SMPTE 352M - Software Control
Router control included free for Windows™ and Mac OS X™ - Internal Software Upgrade
Via included updater application - Physical Installation
1 rack unit size. Less than an inch deep - Power Fail Protection
Router connections preserved and restored instantly at power on independently of host computer
(click on photo
to enlarge)

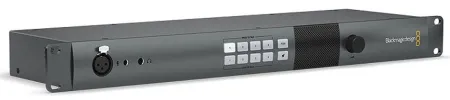

Blackmagic Design Studio Converter 2
The Blackmagic Design Studio Converter 2 inputs SDI video signals transmitted over optical fiber and converts the signals to SDI for use with video switchers. When used in conjunction with the Blackmagic Design ATEM Camera Converter, you can send video signals up to 28 miles between camera and switcher using available optical fiber cables. By comparison sending an HD-SDI signal over traditional copper cable is usually limited to about 300 feet, depending on the quality of the cable.
A typical set up using the Studio Converter 2 is to connect it between the switcher and up to four ATEM Camera Converter units. This set up allows the Converter 2 to receive the signals from the fiber cable, convert the signals to SDI using 10-bit processing, and send the signals to the switcher. The Converter 2 supports SD/HD signals, and when using the available ATEM Camera Converter you can use any camera with an SDI/HDMI output.
The converter 2 can also be used as 4 independent simultaneous bi-directional SD/HD-SDI to optical converters. The converter 2 features a built-in mic input, speaker and headphone jack that provides talkback audio for communicating with camera operators. The Converter 2 passes tally signals embedded in the SDI program stream. You can cascade multiple ATEM Studio Converter 2 units together when using more than 4 cameras. The Studio Converter 2 features a 1RU design with built in rack mount ears for easy integration into existing studio configurations or production cases.
Optical Fiber Connectors
The ATEM Studio Converter 2 uses standard single mode optical fiber cable with standard LC connectors to allow you to transmit SD and HD video signals up to 28 miles away. Standard copper wire SDI cables have a limit of several hundred feet before the signal breaks up, converting the SDI signal to optical, and sending it along optical cable greatly increases the distance of your cable runs.
Talkback and Tally
The unit features a built-in speaker and mic inputs, as well as a headphone jack for when you need privacy, or the area is too loud. When connected to the ATEM Camera Converter, you can talk to your camera operators no matter how far away they are, without needing to worry about walkie talkies. Using the talkback feature, the unit uses audio channels 15 and 16 of the SDI stream for talkback communication.
Camera operators can be selected individually if desired, and communication can be controlled by a push button, or locked open. Mute and un-mute buttons on the front of the unit allows you to control who hears what.
The unit passes SDI Tally signal information back to the cameras along with any SDI Program signal from available switchers.
Multiple Units
Each ATEM Studio Converter 2 connects to up to four ATEM Camera Converter units, allowing you to communicate with up to four camera operators at a time. Multiple Studio Converter 2 units can be cascaded together when more than 4 cameras are needed.
Precision Signal Processing
The unit features chips that use 10-bit processing, and are switchable between SD and HD, for a clean signal.
The unit features four independent simultaneous SDI to optical and optical to SDI converters
When used in conjunction with the ATEM Camera Converter the unit can also be used as four independent SDI or Fiber to HDMI converters.
(click on photo
to enlarge)
Blackmagic Design Hyperdeck Studio 2
The Blackmagic Design HyperDeck Studio 2 is a file-based deck that features the same functionality and control of professional tape decks. It records uncompressed video with 4:2:2 color sampling at 10-bit in Quicktime format, and also records video using either ProRes or DNxHD codecs. With two SSD slots, you can record almost endlessly as one SSD becomes full, recording automatically continues on to the other. The HyperDeck Studio features one 3G-SDI input and three SD/HD/3G-SDI outputs plus a loopthrough output, and one HDMI input and one HDMI output. All outputs, except the loopthrough SDI, are always active, so playback is available on both the SDI and HDMI outputs no matter what input it was recorded from.
The Studio 2 is a 1RU rack mountable unit, with built-in rack mount ears. It features illuminated front panel button control and a jog/shuttle wheel for analog scrubbing. RS-422 control is supported for external control. You can also control the unit using either the USB port or over Ethernet via the RJ45 connector. An integrated LCD on the front panel allows you to monitor the video, and display timecode and transport information.
The HypeDeck Studio 2 records to uncompressed Quicktime at 10-bit with 4:2:2 color sampling. It also records to ProRes 422(HQ), Avid DNxHD and Avid DNxHD MXF
Two SSD Bays
The unit incorporates two 2.5" SSD slots that allow you to record almost endlessly as recording seamlessly switches from one SSD to the other as the first one fills up.
Video Signals
The HyperDeck Studio 2 features separate dedicated input & output connectors, and supports SD/HD signals over SDI and HDMI. In addition to NTSC and PAL signals, 720 x 480p and 720 x 576p signals are only supported over HDMI.
The HyperDeck Studio 2 features VTR style front panel controls for record and playback. With illuminated buttons, for working in dim locations or settings, while a built-in jog/shuttle wheel provides analog style control over your playback.
Outputs
- The HyperDeck Studio 2 features one HDMI, two SDI, and one SDI monitor out which are always active, no matter what the original input signal is. The exception is with 480p & 576p signals over HDMI, these signals will only play back over the HDMI output.
- The unit also features a loopthrough SDI output that only passes the signal from the SDI input, and does not output recorded video from the SSDs.
Remote
The unit is controllable via RS-422 control and over the Ethernet or USB port.
Built-In LCD Monitor
The unit's front panel also features a built-in LCD screen that allows you to monitor input or playback video as well as timecode, format, and audio levels
SDI Connectors
The unit's SDI connectors are 3G capable, but currently the unit only supports HD video up to 1.5Gb/s (HD-SDI).
(click on photo
to enlarge)

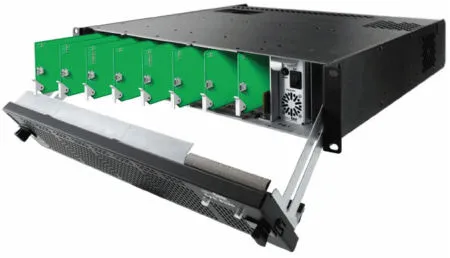

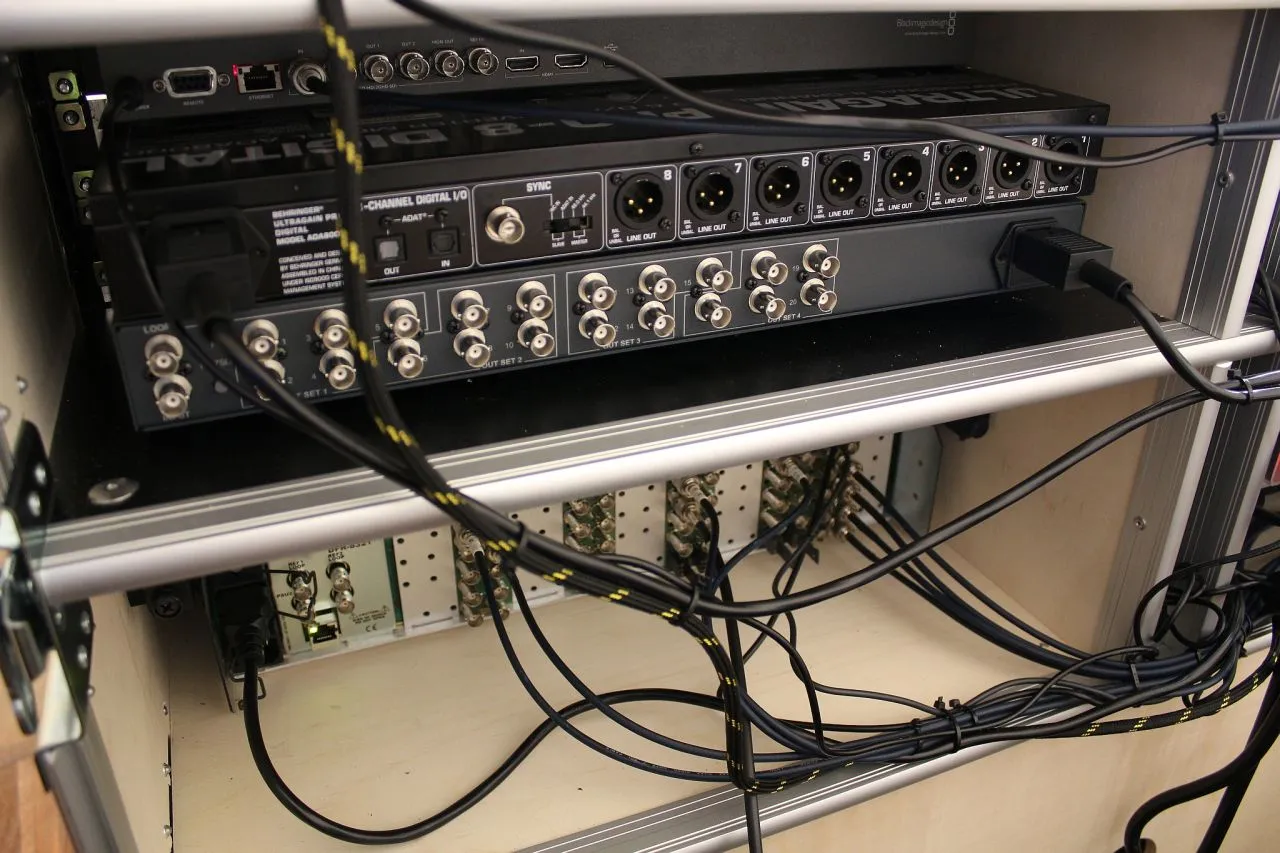

Blackmagic Design Open Gear 20 Slot Frame
OpenGear rack frame with 20 slots, with power supply and fans, suitable for accommodating up to 20 modules with different functions using the standard OpenGear.
The following modules are installed:
- OpenGear Converter Sync Generator
Includes 10 crystal stabilized video reference outputs for referencing all the video equipment in your studio with either high definition tri-sync or standard definition black burst. Perfect for small studios or outside broadcasts!
- OpenGear Converter SDI to Analog
Includes everything you need to convert from SDI to analog HD/SD component, NTSC and PAL video out, plus balanced AES/EBU and analog audio out. Easily connect to Betacam SP, VHS and video monitors. Features a built in hardware down converter to connect HD-SDI video to SD equipment!
- OpenGear Converter Analog to SDI
Perfect for converting from analog HD/SD component to SDI out with balanced AES/EBU and analog audio embedding. Now you can convert analog devices such as Betacam SP, VHS, set top boxes, gaming consoles and HDV cameras to incredible quality SD/HD-SDI video.
- OpenGear Converter UpDownCross
Lets you convert between multiple SD and HD video standards with high quality up, down and cross conversion. OpenGear Converter UpDownCross even includes a full standards converter, plus adapts SDI audio delay to match video processing for accurate AV sync.
(click on photo
to enlarge)

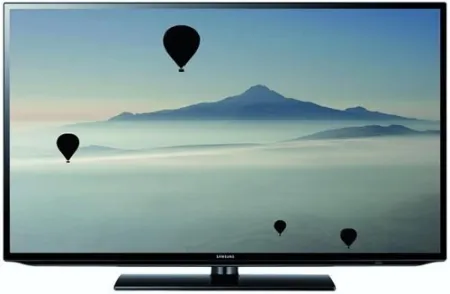

TV/Monitor LED 32" Samsung UE32F5000AK
Watch movies from your USB
With ConnectShare Movie, simply plug your USB memory drive or HDD into the TV and instantaneously enjoy movies, photos or music. Now, you can experience a wide variety of content in the comfort of your living room on your TV.
More vibrant colours for better images
Using an advanced picture quality improvement algorithm, Samsung’s Wide Colour Enhancer Plus drastically improves the quality of any image and uncovers hidden details. Now see colours as they were meant to be seen with Wide Colour Enhancer Plus.
Features
Diagonal length: 32 "
Technology: LED backlight
Resolution: 1920 x 1080
Display format: 1080 p (FullHD)
Motion Enhancement Technology: 100 Hz Clear Motion Rate
Compatible HDCP: Yes
Connections
2 x HDMI ( HDMI A type 19-pin)
1 x USB ( USB A type 4-pin )
1 x composite video input / components video ( RCA phono x 3 )
1 x headphone ( stereo 3.5 mm )
1 x digital audio output (optic) ( TOSLINK )
1 x SCART ( SCART 21-pin )
1 x audio input (RCA x 2 )
Audio system
Digital audio format: DTS Digital output, Dolby Digital Plus, Dolby Pulse output
Surround mode: Yes
Sound effects: DTS Studio Sound, DTS Premium Audio 5.1
Speakers system: 2 speaker
Total output power: 20 Watt
Additional features: Down-firing Speaker, Auto Volume Leveller (AVL)
Speakers: 2 x speaker, main channel - built-in- 10 Watt
Driver details: main channel Speaker: diaphragm dynamic driver

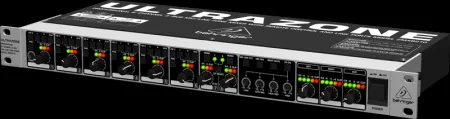

Behringer Ultrazone ZMX 8210 Zone 8 Channel Audio Mixer
A professional 8-channel audio mixer with rack mountable which can distribute music programming and announcements to up to three zones (rooms).
It can be used with any microphone, including professional-grade condenser mics, thanks to the onboard phantom power. The eight input channels are equipped with high-quality mic preamplifiers for absolutely pristine sound quality. A master 4-band equalizer is provided to ensure voice intelligibility and address any potential feedback problems. Moreover if you need more than eight channels, two ZMX8210s can be linked together, providing a total of 16 inputs.
Features:
- Ultra-flexible and easy-to-use zone mixer with remote control ports for commercial sound systems and fixed installation applications;
- 6 ultra-low noise Mic/Line inputs with Gain control, -20 dB Pad, Level/Clip indicator, +48 V phantom power and bus-assign switches;
- 2 selectable high-headroom stereo inputs with mono/stereo switch;
- Channel 1 provides variable threshold to enable automatic bus mute for announcements, etc;
- 3 assignable outputs (Left, Right and Aux) with individual Master controls and 5-segment LED meters;
- Ultra-musical 4-band master EQ and global microphone low-cut filter for perfect sound adjustment;
- Left, Right, Aux and Mute bus links available including Master/Slave switch for connecting multiple units;
- Remote master Left/Right level control port for ultimate flexibility;
- Select switch for routing microphone bus post remote control;
- Integrated channel muting system with Priority select;
- All inputs/outputs on Euro-type connectors;
- High-quality components and exceptionally rugged construction ensure long life.
ELMAN is able to furnish all the necessary equipments for use of Dual O.B. BOX HD: video cameras, VCRs etc...
In accordance with constant improvement policy of products, El.Man (Elettronica Mangione) reserves the right to modify without notice and at any time, features and prices of its own apparatus.
