RCU-PTZ - remote control unit for PTZ videocameras



RCU-PTZ - remote control unit for PTZ videocameras



Conceived for being used for the video surveillance, the television cameras PTZ (Pan, Tilt, Zoom) are also affirmed in the field of the television shots thanks to a quality that is now equal the classical videocameras (they exist in version with 3 ccds and also for high definition), but above all for the fact that being controllable by remote, they don't have need of a cameraman that manages it, they are very small and little invasive especially  when the shots are executed in particular environments: churches, places of cult, surgery rooms, etc...
The Elman has realized to the purpose: RCU-PTZ, a very simple remote control that allows to drive from distance, television cameras type PTZ, with VISCA protocol interface.

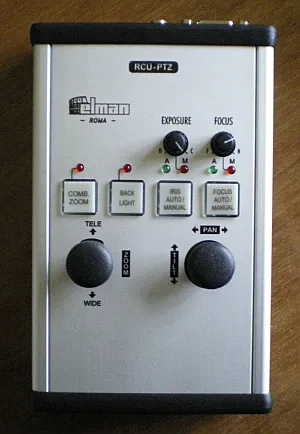

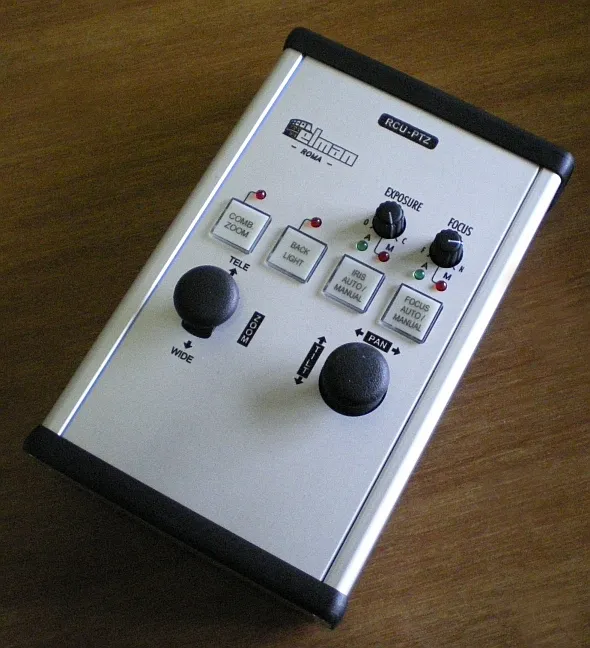

L' RCU-PTZ is very intuitive in his operation and it is realized in an elegant aluminum box.



Commands



The remote control RCU-PTZ also has an input Tally, for connection to the video mixer of the control room, that allows to turn on the led for signaling "On Air" when the television camera is selected from director.
The cable coming from the television camera PTZ is connected to a connector D female with 9 pins (protocol VISCA - RS422).
Particularly the RCU-PTZ has been tested with success with Sony television cameras model: EVI-D70, EVI-D100 and EVI-D30 but the range of models with which it can be interfaced is very wide.
The remote control is powered with a 8-12 V voltage (150 mA) supplied by a external power supply (given with RCU-PTZ)



RCU-PTZ - remote control unit for PTZ videocameras







RCU-PTZ - remote control unit for PTZ videocameras



In accordance with constant improvement policy of products, El.Man (Elettronica Mangione) reserves the right to modify without notice and at any time, features and prices of its own apparatus.
