CO5SDI - 5 x SDI change over
5 x change over for digital video signals SDI

elman 5 x SDI change over
CO5SDI - Front panel of Switching Unit



CO5SDI is a serial digital video 2x1 change over providing high performance line switching for various signal formats from 1Mbps up to 540Mbps.



elman 5 x SDI change over

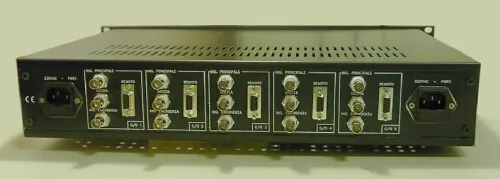

CO5SDI - Rear panel of Switching Unit


The CO5SDI is designed for various line protection applications for studio, campus, broadcast and telecom.

CO5SDI is divided in two parts: the switching central unit and the remot control unit.

They are both devices for 19” rack.

The switching unit is designed to be inserted into a metal box high 2RU, provided with two power supplies (please see photo, showing the back of the device with the two AC power connector).

Both power supplies run in parallel to avoid it switches off  in case of any failure.

The remote control CO5SDI/RC is designed to be inserted into a  metal box high 1 RU and it’s already arranged for a 8 channels control (CO8SDI next version).



elman 5 x SDI change over

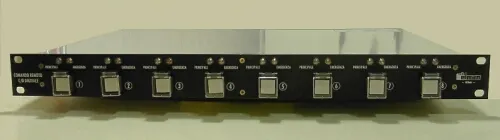

CO5SDI/RC - Front panel of Remote Control


Specifications



Electrical Input
Number of inputs: 2 for 5 modules
Data rate NRZ: 1 to 540 Mbps
Impedance:  75 ohm
Connector:  BNC

Electrical Output
Number of outputs:  1 for 5 modules
Connector:  BNC
Impedance:  75 ohm

Electrical  Dual power supply
Power:  220 Vac

Supported standards
SMPTE: SMPTE259M, SMPTE305.2M, SMPTE310M, SMPTE344M
DVB-ASI: EN50083-9



elman 5 x SDI change over

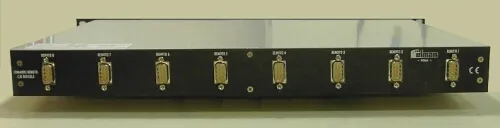

CO5SDI/RC - Rear panel of Remote Control





In accordance with constant improvement policy of products, El.Man (Elettronica Mangione) reserves the right to modify without notice and at any time, features and prices of its own apparatus.
