Elman's BBSD is a video black burst separator for PAL/NTSC designed to extract sync and color burst from a composite video signal, then distribute it on 4 outputs for genlocking and other uses.
Note that the BBSD requires an incoming signal in order to operate, it should not be used as a sync or burst generator.
Elman's BBSD is a stand alone module (that can be
accommodated in the ELMAN’s 1 RU 19" multifuction-system subrack which can be inserted together with other two stand alone modules
simultaneously.

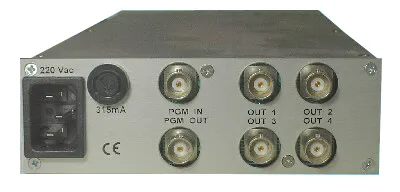

The Elman BBSD can be independently utilized also being the apparatus provided with its own
power supply (220 Vac) and with all the necessary connectors on a rear panel:
1 BNC for PGM IN
1 BNC for PGM OUT/THROUGH
4 BNC for black burst out
1 IEC/CEE222 AC power connector
A LED on front panel shows when the power is on.
In accordance with constant improvement policy of products, El.Man (Elettronica Mangione) reserves the right to modify without notice and at any time, features and prices of its own apparatus.
