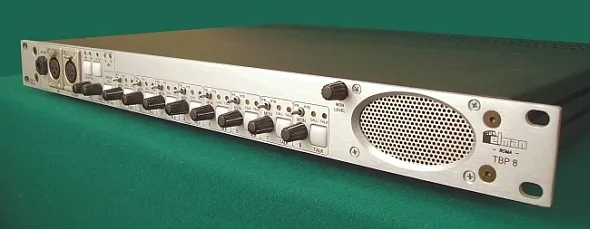

TBP8 is the new professional intercom produced by ELMAN that allows the communication to 4 wires on 8 channels, or to 4 wires on 7 channels plus to 2 wires on 1 channel, on which you can connect more users.

The functions IFB of every channel are separately configurable.

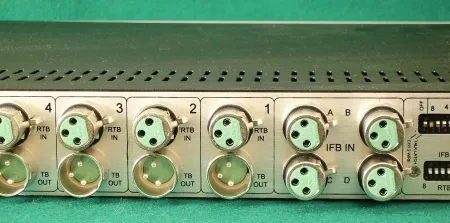

The connection with other apparatuses happens through common connectors XLR.
The TBP8 is an intercom usable in all that cases in which the distance communication is necessary, for example:

TBP8 is compatible with similar apparatuses of other brands in commerce.

headset inputs
type: balanced and unbalanced
connector: XLR5 female
impedance: 2000/4000 ohm
phantom power: 12 V 1.7 mA

type: balanced input with galvanic isolation in continuous current
connector: XLR3 female
impedance: 10K ohm
Input level for 2 W in loudspeaker: 0 dB
maximum level (clipping): 12 dB
bandwith: -3 dB from 100 Hz to 10 Khz

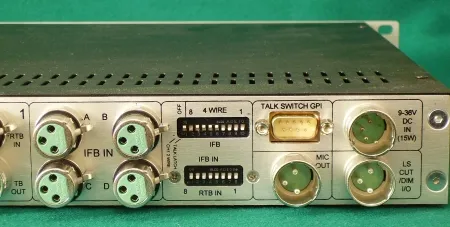

Interrupted Feedback inputs (IFB IN)

Talk Level 0 dBU
Talk Level 8 dBU
Call and Talk for every channel
GN (Gooseneck): gooseneck microphone input selected
H/S (Headset): headset microphone input selected

Controls

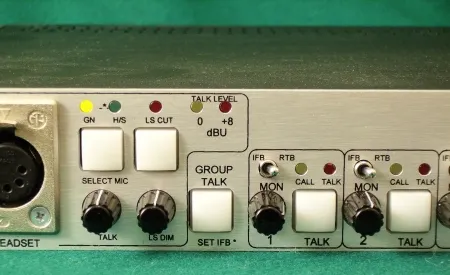

Front panel

TBP8T
Is available a modified version of TBP8 able to connect two telephones in parallel to the input 1. The only differences in comparison to the TBP8 basic version concern:

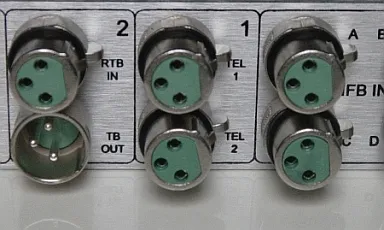

on the back panel, change the connectors relative of the user 1 (2 XLR female instead that a male and a female) and the writings that in this case are TEL1 and TEL2 .

Description

This unit is powered from the telephone line and provides an interface to a 4-wires circuit with separate level control of send and receive signals.
Optimum rejection of the input signal on the 4-wires output is achieved by adjusting SIDETONE NULL trimmer.
This can be used to compensate for local line variations or to adapt to the telephone systems of other countries, where line characteristics may differ.

TBU is compatible with similar apparatuses of other brands in commerce.

Specifications

4-Wires input

Line input / Headphone amplifier

The BIA (Beltpack IFB Amplifier), battery-powered belt-pack unit, allows either loudspeaker or headphone monitoring of a communication or audio feed, and is typically used with a presenter’s earpiece as part of an IFB kit.

Standard Features

• Selectable limiter: prevents clipping distortion and damage to hearing with earpieces & headphone types
• Built-in 0.5W loudspeaker & amplifier (power to the amplifier is cut when headphones are connected)
• Loop-through male & female XLR connectors enable several units to be driven from a single feed.
• Headphone output on “A” gauge 6.35mm jack.
• Very low battery consumption.
• Low battery voltage indicator.

Description

The input gain is controlled by a potentiometer, a 0/20dB gain switch and a selectable limiter. The limiter can be used to ensure a safe listening level over a wide range of input signal levels and also improves signal intelligibility by preventing clipping of the output signal as the battery discharges.
