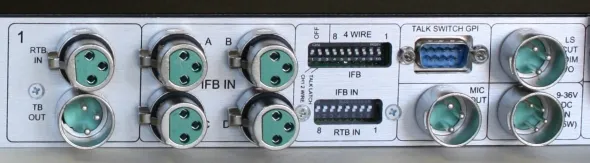

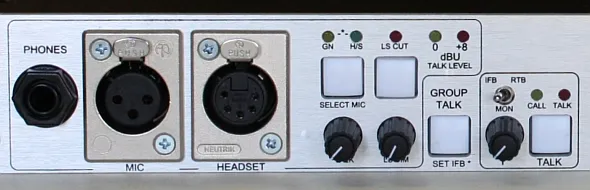

(click on photo to enlarge)

To request to the moment of the order it is possible to ask for:

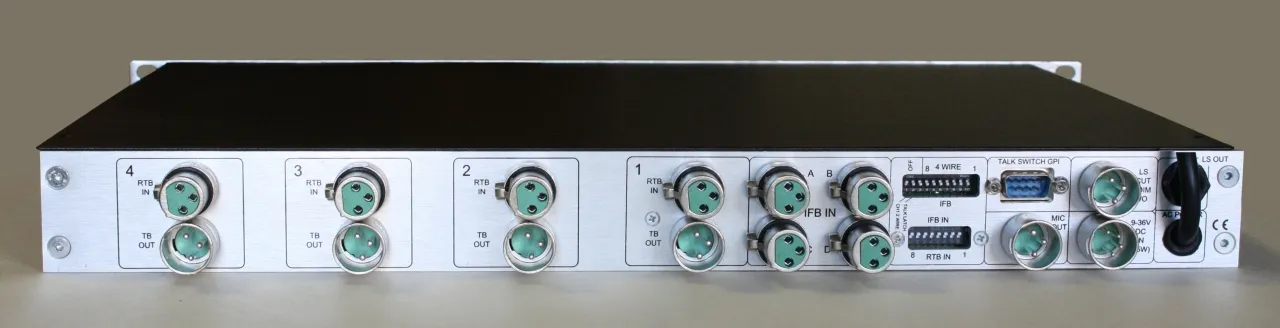

Thanks to the use of particular XLR panel connectors, it has been possible to contain the dimensions of the TBP4 in a container only 1RU 19" tall.
This, togheter with low consumption and the possibility of 12 V or 24 V power supply, make the TBP4 a versatile instrument for use both in studios and in vehicles for outside broadcast.

Gooseneck microphone input
type: balanced and unbalanced
connector: XLR3 female
impedance: 2000/4000 ohm
phantom power: 12 V 1.7 mA

Microphone output
type: balanced output with galvanic isolation in continuous current
connector: XLR3 male
nominal output level: 0 dBu
maximum output level (clipping): 17 dBu

type: balanced output with galvanic isolation in continuous current
connector: XLR3 male
nominal output level: 0 dBu
maximum output level (clipping): 17 dBu
bandwith: -3 dB from 100 Hz to 7.5 Khz

type: balanced input with galvanic isolation in continuous current
connector: XLR3 female
impedance: 10K ohm
Input nominal level for 2 W in loudspeaker: 0dB
maximum level (clipping): 12 dB
bandwith: -3 dB from 100 Hz to 10 Khz

(click on photo to enlarge)

TBU - Telephone Balance Unit

The TBU (Telephone Balance Unit) provide high degree of separation between send and receive signals, enabling 4-wires communications system to interface with the telephone network.
In telephone IFB applications, the high drive capacity at the 4-wires output, enables a presenter’s earpiece to be connected directly to the unit without an external amplifier.

Features

To enable communication between the 4-wires circuit and the telephone network, the 4-wires an line connections are made to the unit and the “hook” switch is pressed to power the unit from the line.
This will be indicated by the ON LED, and can either be done after an outgoing call has been dialed on a telephone set connected to the unit, or to answer an incoming call after RING LED is seen flash (a telephone set is not required for incoming calls unless an audible ring is required).
If the sidetone level at the 4-wires output is found to be excessive, the outgoing signal level should be reduced or the balance controls adjusted to minimize it.
To ensure compatibility with all systems, a switch is provided to select either the inner or outer pair of conductors on the RJ11 connector.

4WBB is compatible with similar apparatuses of other brands in commerce.

Specifications

Microphone input / Line output amplifier

BIA - Beltpack IFB Amplifier

BIA is compatible with similar apparatuses of other brands in commerce.

Specifications
