COSDIA - change over audio/video SDI + analog
3 inputs (2 SDI + 1 analog), 1 output (SDI) + audio and videoCOSDIA - change over audio/video analog and SDI

The COSDIA is a professional audio/video change over that allows to select 3 signals video in input (2 SDI inputs and an analogical video input) to send them to 1 video output SDI (serial digital interface).

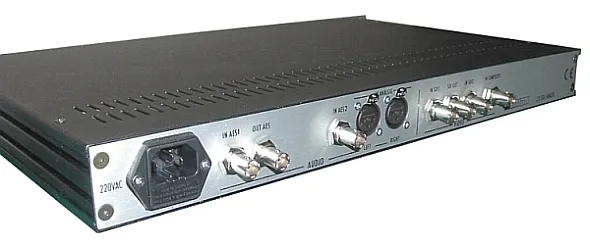

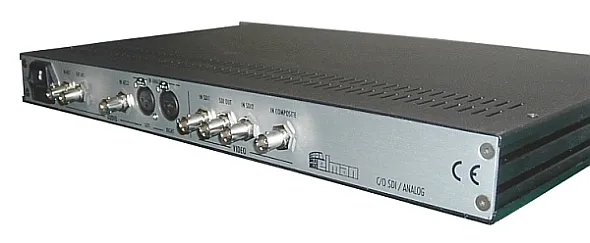

The audio related to the 2 SDI video inputs, are type digital AES/EBU (it enters with 2 BNC connectors: AES1 and AES2) while that relative of the analogical video input is a balanced stereo audio and it enters through 2 XLR connectors .
The analogical video signal and related analogical stereo audio, are converted inside the COSDIA, in digital, to be able to send it to exit when the ANALOG input is selected.
The selection happens through three buttons, endowed with a protection cover against the accidental maneuvers, placed on the frontal panel of the COSDIA
The COSDIA  is realized in a metallic container tall 1 rack unit 19" and it possesses an incorporated power supply.

COSDIA - change oCOSDIA - change over audio/video analog and SDI

COSDIA - change over audio/viCOSDIA - change over audio/video analog and SDI





In accordance with constant improvement policy of products, El.Man (Elettronica Mangione) reserves the right to modify without notice and at any time, features and prices of its own apparatus.
