VP BOX - Video Production BOX
portable tv studio PAL (or NTSC optional)
 |

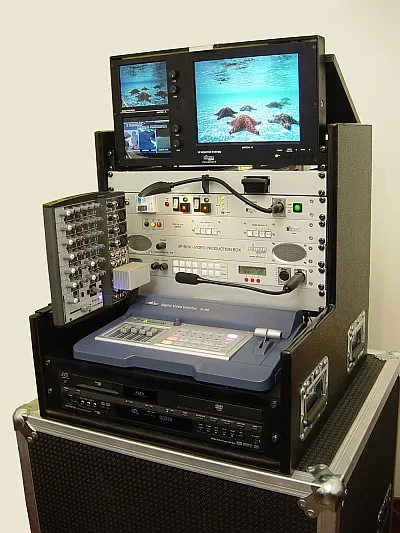

| V.P.Box - total view |
The ELMAN is specialized since 1990 in the
realization of television portable studios, sold and appreciated by the most
greater broadcasting stations and production studios of the whole world.
From this experience of over 15 years and to meet the demands been born by the
development of the new technologies (streaming video, videoconference,
webcasting etc...) Elman has been realized the portable tv studio VP Box (Video Production BOX).
The VP Box can be used for:
• live events (sporting, artistic, political, actuality)
• personalized shots during international TV transmissions
• publicity, television spots, television sales
• documentaries and journalistic report
• video productions
• industrial video productions
• short and long films
• interview and debates
• webcasting transmissions
• video streaming conferences
• live concerts, realization of musical videoclip
• inaugurations, shows, seminars and congresses
• training of students, technical and sanitary personnel, etc...
• surgery room tv shots
• marriages, fashion exhibitions
• cultural and didactic meetings
• tv shots in cult sites
Video presentation of V.P. Box |

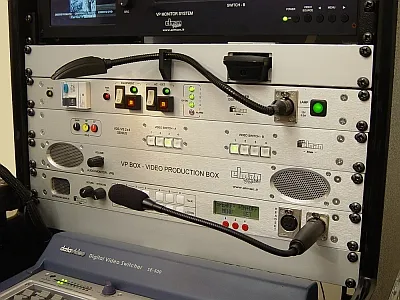

The following is a list of the apparatus contained in the system
• Triple LCD TFT MONITOR - one 10" and two 5.6" (ELMAN)
• Intercom Genius - 7 channels intercom 2 and 4 wires and Tally (ELMAN)
• VPB Audio Monitor System for audio amplification and diffusion in a 1 RU (ELMAN)
• VDE/VS 2x4 - Switcher/Video Distributor - 4
channels double video switcher + 1x6 equalized video distributor (ELMAN)
• Video Mixer Datavideo SE 500 - 4 input channels for S-Video (Y/C) and
Composite
• JVC SR-HD1250 combo deck recorder for Blu-Ray, DVD, HDD, SD card with various editing and dubbing capabilities

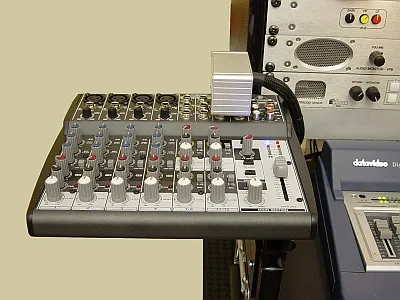

• Audio Mixer 12 channels Behringer Xenyx 1202
• AC/DC Power Distribution - Controller for energy distribution (ELMAN)

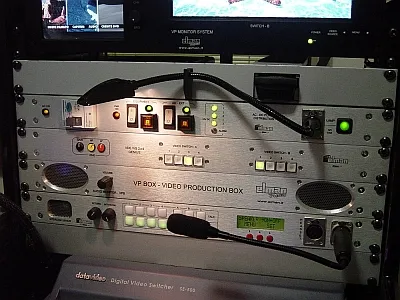

• Gooseneck service light
VP Box Description
VP Box is a portable professional television
studio in miniature, complete and easily manageable from few people.
The VP Box is realized in an elegant container of metal and wood, the VP Box has all the necessary equipment for: the television shots and for
the communications between the technicians that realize it (director, cameramen
etc...).

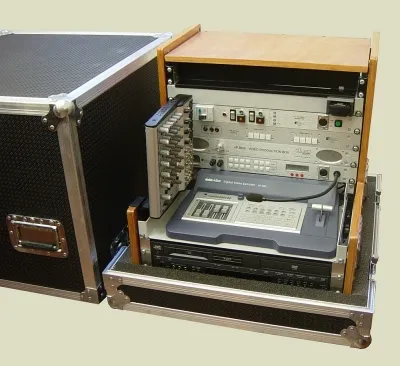

For his transport is furnished a special container with shaped inside stuffing,
in which the VP Box can be placed during the trip to reduce any
mechanical solicitation.
The VP Box has professional characteristics and a approachable price.
Repeatability of commands
If you have the necessity to create a lot of rooms equipped for television
shots, videostreaming and videoconference (ministries, schools,
industries, banks, etc…) and you desire your technicians not to waste time,
every time, to learn the configuration and the commands of the apparatuses of
every different posting (with risk of errors in the moment of the working), you
can equip every room with a VP Box.
The technicians will be every time of forehead to the same type of apparatuses and will be quickly ready for to operate.
Moreover, being the equipment always of the same type, the job of training will be simplified.
Accessibility with every condition
When it is essential to use more television cameras connected to a control board
(shots of soccer, concerts, shows...), but particular structural, logistic or
of transport conditions, prevent to use one structure prepared on a o.b.van, to
use a VP Box is the only alternative solution.
The particular situations in order to use VP Box, are those in which the equipment video it must travel in airplane, in ship, or with other transported material from thirds party as it happens in the tournee and the road show.
Also when the zone of the tv shots it is
localized in places accessible with difficulty from motor vehicles, as an
example: rooms placed to the last plans of centers conferences, stand situates
to the center of exhibitions spaces, small theatres, ski tracks, etc…, the VP
Box represents an optimal solution.
Dedicated Production Control
In occasion of shots of world-wide interest (formula 1 gran prix, motorcycling competitions, soccer matches, etc…), to the international TV production control is placed side by side a "dedicated" production control that personalizes the program with images coming from the own television cameras. The VP Box is used also for this scope.
The VP Box equipment includes
Triple LCD monitor
An innovative triple LCD monitor produced by the Elman, composed from two 5.6 inch screens and from one 10 inch screen for a better vision of the images. The monitor is balancing for to improve the visualization angle. When VP Box is introduced in the container for the transport, the triple monitor is closed horizontally.
 |

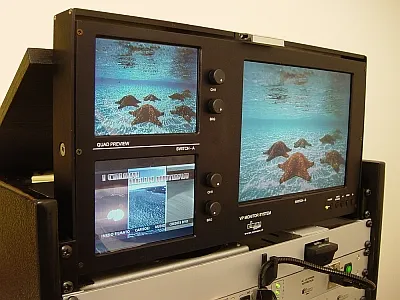

Triple monitor: two 5.6" and one 10" |
 |
Animation of the spin movement of the triple monitor |
Video Mixer Datavideo SE 500 - 4 input channels for S-Video (Y/C) and Composite
SE 500 is an analogue input, digital
processing video switcher. The SE-500 includes 4 groups of video input (4 x
composite and 4 x S-Video), 4 channels audio mixer, 2 microphone inputs,
color correction, digital video transition effects, MIDI control interface,
RS-232 remote control interface and many more professional features.
Additionally, the SE-500 includes a truly unique feature Quad Preview. This
preview output displays both tally light signals, and next video effects
indicator. The operator can use one single monitor to observe four video
input sources, camera activities, and video transition effects. The SE-500
has all the popular features of many more expensive mixers and it is
extremely compact in size. No Genlock Required
Dual Channel Time Base Corrector and 4:2:2 frame synchronizer built in.
There is no need to run external sync to this switcher.
Features
-
Digital Processor, high image quality
-
Backlit Switches
-
T-Bar control of digital video effect transitions
-
Four inputs of S-Video (Y/C) and Composite Video
-
RS232 remote control
-
MIDI control interface
-
Tally output
-
Two microphone channels with one auxilary input audio mixer
-
Colour processor for video correction
-
Quad video preview monitor output with tally indicators on TV screen
-
Digital video effects: Split, PIP, Wipe, Fade, Dissolve, Quad
-
Video Formats: Analogue S-Video (Y/C) and Composite PAL (NTSC is available as a different model), YUV at Sony Betacam Standard
-
Video Inputs (4 Max): 4 x Composite, 4 x S-Video (Y/C)
-
Video Output: Composite and S-Video, YUV output, Quad Preview output with Tally light indicator and next video effects indicator
-
Audio Inputs: 2 x Microphone, 1 x Stereo Audio (RCA) Aux
-
Audio Output: Main output and headphone output with volume control
-
Dual Channel Full Frame Synchronizer TBC: 4:2:2, 13.5MHz
-
Digital Effects: A/B Dissolve, PIP, Quad, Split, Wipe, Fade (Digital Effects with T-Bar manual control)
-
Headphone Monitor Jack: Stereo Audio, 1.0W rms in 16 ohms
-
RS232 Data Control Port for Remote Control: Yes
-
MIDI Control Interface: Yes
-
Colour Processing: Brightness: +/-30%, Contrast: +3dB / -6dB, Colour: +6dB / -10dB
-
Video Bandwidth: Component (YUV): > 4.8MHz, S-Video (Y/C): > 4.8MHz, Composite: > 4.8MHz
-
Audio Bandwidth: 20Hz - 20kHz, +/-3dB
-
Signal/Noise Ratio (SNR): Video: > 50dB, Audio: > 70B
-
DG, DP: +/-3%, 3 degrees
-
Audio THD: > 0.1%
-
Dimensions: 380x55x245mm (W x H x D)
-
Weight: 2.1 kg
-
Power: AC 90-240v
The audio section of SE 500 is not used because for audio signals of VP Box is used the mixer Behringer Xenyx 1202.
 |

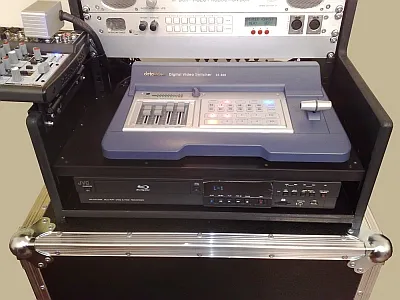

Video Mixer Datavideo SE 500 |

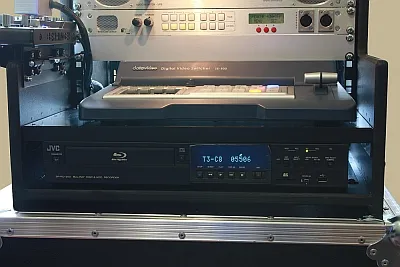

JVC SR-HD1250 combo deck recorder for Blu-Ray, DVD, HDD, SD card
Compatible with AVCHD, HDV and DV Camcorders.
(click here for see datasheet)
SR-HD1250 is the world’s first professional HD combo deck featuring a Blu-ray
recorder, 250GB HDD, and SDHC compatible SD card slot. The SR-HD1250 is ready to import recordings from
high-definition camcorders compatible with AVCHD, HDV and DV to facilitate the creation of recordings in full HD
format. Once footage is imported onto the deck’s 250GB HDD from a variety of media and interfaces, HD content can
be edited, archived and/or dubbed onto Blu-ray discs or down converted onto DVDs. The entire BD or DVD disc can
be recorded using the Entire Disc Dubbing. High-speed Dubbing enables for quick duplication of original HD content.
Delivers professionally finished recordings
Users can easily and quickly make recordings of camcorder
content as is or perform simple editing on the SR-HD1250
without the use of a PC. Once this is completed, all that is left
to do is burn the content onto BD/DVD discs for delivery to clients.
Supported disc recording/playback formats
Recordings of video and still images can be made on
BD-RE, BD-R, DVD-R, and DVD-RW discs, whereas JPEG
still images can be recorded on SDHD and SD cards from the HDD.
For DVD discs, VR and Video recording modes are available.
Unused discs and SD cards can be formatted on the deck.
The SR-HD1250 plays titles stored on the HDD, videos on all
of the aforementioned discs as well as commercially available
BD-Video and DVD-Video titles*, plus music CDs.
Create menu-supported Blu-ray discs
Blu-ray discs can be created using the BDMV (with menu) format; BDAV
discs can also be created and dubbed if necessary.
Create menu-supported Blu-ray discs
Blu-ray discs can be created using the BDMV (with menu) format; BDAV
discs can also be created and dubbed if necessary.
Compatible with camcorders supporting AVCHD,
HDV, and DV formats
Multiple file formats such as AVCHD, HDV, DV, and that of JVC’s HD
Everio camcorder are supported; digital dubbing can also be performed.
Digital interface that enhances camcorder compatibility
Interfaces such as USB, SDHC slot
and i.LINK are featured to facilitate
convenient connection to
camcorders and HD cameras.
Viewing on a display monitor
Viewing of HD video on edited BD/DVD discs, SDHC/SD cards, or on the HDD
directly on a display monitor is made possible by connection via an HDMI cable.
With an HDMI connection, the content containing 7.1ch
surround sound can be reproduced in its
original format.
Edit functions
Simplified editing is possible without
the use of a PC.
Editing functions
include creating a playlist, editing a
thumbnail or chapter, delete scenes,
divide and more. Of course the
names of disc, title or group name as
well as changing the shooting date
and time can be performed at ease.
Flexible and bi-directional recording functions
Even without a PC, it is possible to copy video recordings onto a Blu-ray
disc from an HD camcorder via the HDD or down convert video recordings
and record them onto a DVD via the HDD. Dubbing (at high-speed or in a
specific rec mode) between the internal HDD and Blu-ray disc/DVD or vice
versa, is also possible.
Entire Disc Dubbing function
An entire Blu-ray or DVD disc can be dubbed onto another blank disc.
High-speed Dubbing function for
prompt delivery to clients
The time it takes to dub from the internal HDD onto a Blu-ray or DVD disc
can be shortened significantly via the High-speed Dubbing function that
enables recording at a maximum speed of x32*. Make use of BD or DVD
disc that supports high-speed recording.
Specifications
| SR-HD1250 | ||
| Recording Function | ||
| HDD storage capacity | 250GB | |
| Video recording system | H.264 (MPEG-4 AVC), MPEG-2 TS, MPEG-2 PS, JPEG (Still) |
|
| Audio recording system | Dolby Digital, Linear PCM | |
| Importable data format (to HDD) | AVCHD, HDV, DV, JPEG, BDAV, BDMV, DVD-Video/VR, Everio backup disc |
|
| Recordable Media | ||
| Blu-ray Disc | BD-R (SL/DL), BD-RE (SL/DL)*1 | |
| DVD | DVD-R (SL/DL), DVD-RW | |
| SD Card (Still) | SDHC, SD | |
| Playable Media | ||
| Blu-ray Disc | BD-Video, BD-R (SL/DL), BD-RE (SL/DL) |
|
| DVD | DVD-Video, DVD-R (SL/DL), DVD-RW, DVD-RAM, DVD+R (SL/DL), +RW |
|
| CD | CD, CD-R, CD-RW | |
| SD Card (Video*2/Still) | SDHC, SD | |
| Recordable/Playable Disc Format | ||
| Recordable BDMV (HDMV) BD-R (SL/DL), BD-RE (SL/DL)*1 disc format |
BDAV | BD-R (SL/DL), BD-RE (SL/DL)* 1 |
| BDMV (HDMV) | BD-R (SL/DL), BD-RE (SL/DL)*1 | |
| DVD-Video | DVD-R (SL/DL)/-RW | |
| DVD-VR mode | DVD-R (SL/DL)/-RW | |
| JPEG | BD-RE (SL/DL), SDHC, SD | |
| Playable disc format |
BDAV | BD-R (SL/DL), BD-RE (SL/DL)* 1 |
| BDMV (HDMV) | BD-R (SL/DL), BD-RE (SL/DL)*1 | |
| DVD-Video | DVD-R (SL/DL)/-RW, +RW | |
| DVD-VR (CPRM enabled) | DVD-R (SL/DL)/-RW, DVD-RAM |
|
| AVCHD | DVD-R (SL/DL)/-RW, DVD-RAM, SDHC, SD |
|
| JPEG | BD-RE (SL/DL), SDHC, SD, Everio backup disc (DVD-R/-RW) |
|
| CD-DA | Yes | |
| Everio backup disk | Yes | |
| Recording Mode | ||
| MPEG-2 TS | DR | |
| H.264 (MPEG-4 AVC) | AF, AN, AL,AE | |
| MPEG-2 PS | XP, SP, LP, EP, FR | |
| Input and Output*3 | ||
| Video input/output | 1 Vp-p, 75 Ω (BNC) | |
| Audio input/output | 2Vrms (pin jack) | |
| S-video input/output | Y: 1.0 Vp-p, 75 Ω, C: 0.286 Vp-p, 75 Ω |
|
| DV input | 4-pin for DV, HDV IN | |
| Remote input | 3.5 mm diameter jack | |
| Component video output | Y: 1.0 Vp-p, 75 Ω | |
| CB/CR, PB/PR: 0.7 Vp-p, 75 Ω | ||
| HDMI output | 19-pin type A (Deep Color, x.v.Color, Ver.1.3a) |
|
| USB terminal | USB2.0 | |
| SD memory card | SDHC, SD | |
| Accessories | ||
| Supplied accessories | AC power cord, audio/video Supplied accessories cable, BNC male to RCA female adapter, infrared remote control unit, “AA” battery x 2 |
|
| General | ||
| Power requirement | AC 120 V, 60 Hz | |
| Temperature | operating | 34 W/3.0 W |
| 41°F to 95°F (5°C to 35°C) | ||
| storage | -4°F to 140°F (-20°C to 60°C) | |
| Operating position | Horizontal only | |
| Dimensions (W x H x D) | 17-1/10" x 2-6/8" x 13-13/16" (435 mm x 70 mm x 351 mm) |
|
| Weight | 11.0 lbs (5.0 kg) | |
In the zone immediately below to the monitors it has been predisposed a lodging for the remote controller of JVC SR-HD1250.
 |
JVC SR-HD1250 combo deck recorder for Blu-Ray, DVD, HDD, SD card |
 |
Remote controller of JVC SR DVM700* |
Audio Section
BEHRINGER XENYX 1202
12 inputs and 2 bus with preamps mixer
- Highest quality 12 inputs mixer 2 bus with XENYX mic. preamplifier
- Lowest interference, very high dynamic range
- 2 new XENYX vanguard mic preamplifier.
- “British” 3 bands neoclassic EQ for a warm and musical sound
Thanks to use of the most modern circuit techniques, XENYX 1202 mixer is able to reproduce an incomparable warm analog sound.
The channels of microphones are equipped with preamp High-End XENYX Mic, which quality of sound and dynamic is comparable to that of outboard preamp and provide an incredible headroom with 130 dB dynamic spectrum.
With a bandwidth from 10Hz to over 200Hz they allow a crystalline reproduction of various nuances.
> See XENYX 1202 datasheet with features
 |
Audio Mixer Behringer Xenyx 1202 |
 |
Animation of spin movement of the audio mixer Behringer |
Intercom Genius - Intercom/Tally
7 channels full/duplex and half/duplex intercom with interrupted feedback and input for external producer.
The intercom has three channels at 2 wires (for cameras) and four channels at 4 wires, to talk for examples,to an external producer, recording rooms, external o.b.van, etc...
Intercom Genius has also a second function, it sends Tally information for 4 videocameras, that are transmitted on 2 wires audio line for the cameramen beltpack terminals (optional).
VPB Audio Monitor
System for audio amplification and diffusion in a 1 RU.
The two loudspeakers dedicated to middle and high frequencies are assembled inside the 1RU container, while, to the strengthening of the listening on the low frequencies, contributes a woofer installed inside the VP Box.
VDE/VS 2x4 - Switcher/Video Distributor
4 channels double video switcher + 1x6 equalized
video distributor.
AC/DC Power Distribution - Controller for energy distribution
On the frontal panel, there are 3 switches:
the first (left) is a differential switch for AC electrical net (system power),
the second a "equipment" switch for the apparatuses installed
inside VP Box , the third a switch for "external" equipment
outside VP Box.
A XLR5 female connector allows to connect directly a lamp with gooseneck flexible arm for to illuminate the zone of the commands of the mixer video without disturbing the surrounding environment.
 |
Particular of
the gooseneck lamp |
 |
From top to bottom: |
 |

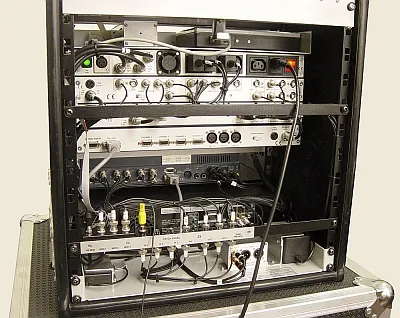

Rear of VP Box(click on photo to enlarge) |
Weight, dimensions and
consumption
The total weight of the standard configuration of the VP Box visible in
the photos is: 42 Kg.
The weight of the container flightcase for the transport is: 18 Kg.
The dimensions of the VP Box with all the apparatuses in position of job
are (cm): 73 (W) x 57 (D) x 68 (H).
The dimensions with the mixer audio and the monitors closed in position of
transport are (cm): 53 (W) x 57 (D) x 52 (H).
The dimensions of the container for the transport are (cm): 70 (W) x 64 (D) x 64
(H).
The power absorbed by the VP Box is: 250 watt.
 |
VP Box inserted
in the container for transport |
ELMAN is able to furnish all the necessary equipments for use of VP Box: video cameras, VCRs etc...
In accordance with constant improvement policy of products, El.Man (Elettronica Mangione) reserves the right to modify without notice and at any time, features and prices of its own apparatus.
