AT8 - 8 lines telephone monitor for 8 return programs
selectable by remote by phone keyboard

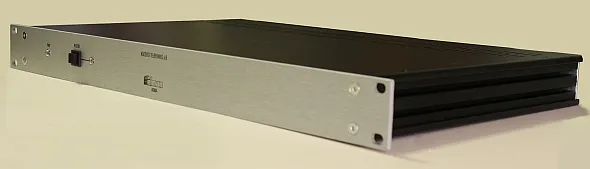

AT8 - front (click on photo to enlarge)
AT8 is an unique apparatus in his kind and very useful, built on request of an our customer, it allows to listen through the telephone line, the sound of the return program of a radio or television transmission.
It can be employed from the journalists to be able to listen to the course of a program in studio and to understand when it is the time to intervene in the transmission.
The peculiarity of the AT8 is constituted by the possibility of chosen from remote outstation, by means of the telephone keyboard, of the return program that it is wished to listen between 8 different signals.
AT8 is useful when a reporter station is used in more transmissions or television channels, for example during the political elections, with AT8 you be able to intervene in one or more television news, choosing autonomously without the aid of technicians in studio the return program wanted.
AT8 is provided of 8 telephone line inputs so can be used simultaneously from 8 different users.
By means of a button positioned on the frontal panel is possible to record a vocal message that explains at the users that are connected by phone, what are the available transmissions and what the number is to press for being able to listen to her.
AT8 is realized in a strong metallic container high 1 RU 19" and is fed to 220 Vac, the weight is of 2,3 Kg.
Rear panel
- 8 RJ11 connectors for the telephone lines
- 8 RJ45 connectors for the audio sources
- 1 RJ45 connector for the input signal of vocal message recorder
- 1 220 Vac IEC connector with fuse for power supply

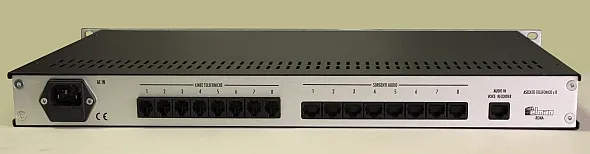

AT8 - rear (click on photo
to enlarge)
In accordance with constant improvement policy of products, El.Man (Elettronica Mangione) reserves the right to modify without notice and at any time, features and prices of its own apparatus.
