COAUDIO 10x1 - Change Over Audio Stereo 10x1

Change Over Audio Stereo 10x1
(click on photo to enlarge)



Expressly designed for broadcast applications the COAUDIO 10x1 is a passive 10x1 stereo audio switcher intended for use in manifold applications in the field of the audiovisual production, it switches any one of ten stereo signals to a single stereo output.

Are used two identical relais circuits for each switch position.

It memorizes the last channel selected before the turning off proposing it to the following switch on.

Unselected inputs terminate into a 600 ohm resistor.
The crosstalk is about 90 dB and bandwidth (-3dB) 100 kHz.

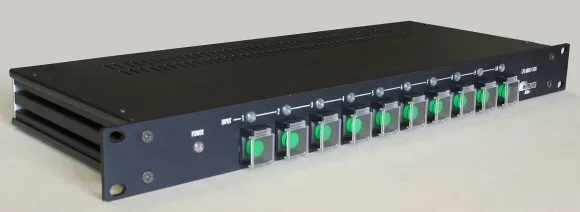

On frontal panel are located 10 buttons (protected by a trasparent flap to avoid accidental switchings) necessary for the input selection with one led per key that point out the selected input channel.

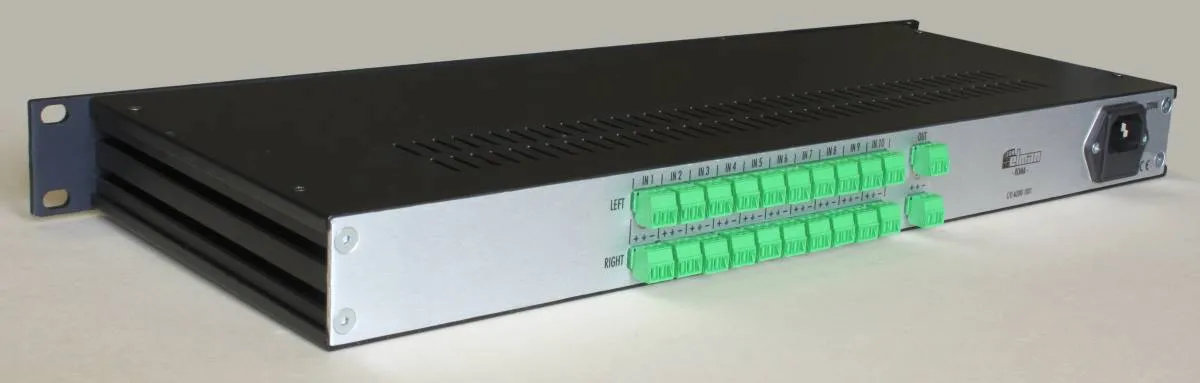

The switcher is housed in an one rack unit (480 x 170 x 44 mm), 19" rack mounting rugged chassis with audio connections via plug in terminal blocks.

The 220 Vac power supply is embedded with a IEC connector on rear panel



Applications:

Change Over Audio Stereo 10x1
(click on photo to enlarge)



In accordance with constant improvement policy of products, El.Man (Elettronica Mangione) reserves the right to modify without notice and at any time, features and prices of its own apparatus.
